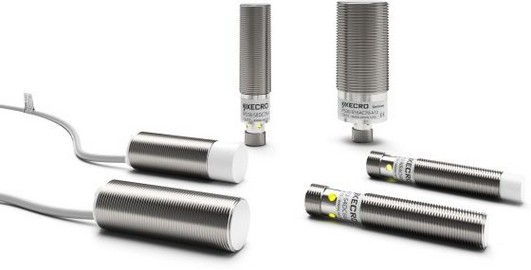

2-wire DC

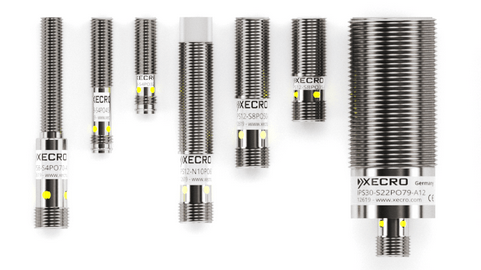

For installations that benefit from a sensor with a 2-wire connection, for example in order to replace mechanical limit switches in an existing installation, XECRO offers a complete line of inductive proximity switches ranging from M8 to M30 and also includes 40×40.

2-wire AC
Inductive proximity switches for 2-wire AC connections are ideal to replace mechanical limit switches in applications with alternating current supply. They are available in sizes of M18 and M30, 40×40 and with sensing ranges up to 30 mm. They’re rated for 20…250 VAC.

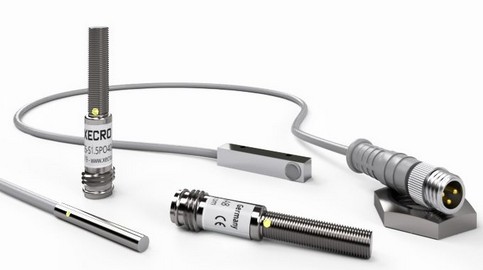

Engineers are often faced with a particular need for sensors that fit into tight spaces. All inductive sensors of the Miniature Series are fully integrated; no external amplifier is required. All models are equipped with reverse polarity protection and short-circuit protected switching outputs. Also an optical switching indicator is always built-in.

Ø3 mm, Sn up to 1 mm
M4 x 0.5, Sn up to 1 mm
Ø4 mm, Sn up to 1.5 mm
M5 x 0.5, Sn up to 1.5 mm
5 x 5 mm, Sn up to 1.5 mm
M8 x 1, 18 mm short, Sn up to 4 mm
M12 x 1, 22 mm short, Sn up to 8 mm

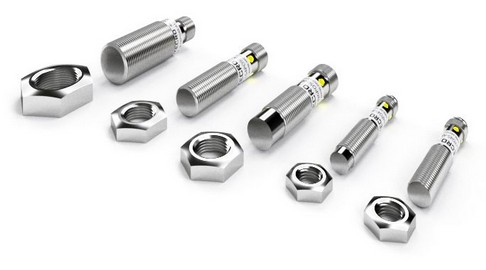

Inductive Metal-Face sensors from XECRO are constructed with housings made of one continuous piece of stainless steel – which also includes the sensing face. The exceptional ruggedness makes them ideal sensors for environments where even long sensing ranges cannot prevent mechanical damage of the sensor.
The highly optimized electronics gives XECRO the ability to manufacture these robust and reliable sensors using relatively short housings, which allow for mounting where installation space is limited. The benefits of this innovative Metal-Face technique can also be found in some sensors from the High Pressure Series.

M8, shielded, 2 mm, connector M8 or cable connection
M8, unshielded, 3.5 mm, connector M8 or cable connection
M12, shielded, 4 mm, connector M12 or cable connection
M12, unshielded, 8 mm, connector M12 or cable connection
M18, shielded, 8 mm, connector M12 or cable connection

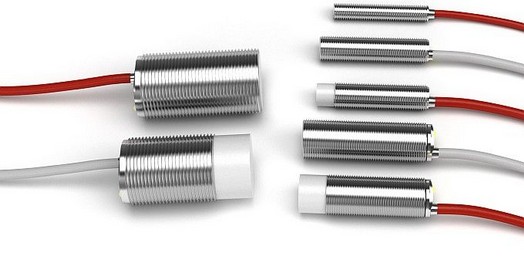

Inductive Sensors High Temperature Proximity Switches are designed for continuous operation at temperatures of up to +180 ° C. These sensors are fully integrated and their dimensions correspond with XECRO sensors for normal temperatures. This allows for high standardization if an existing inductive proximity switch needs to be replaced by a high temperature sensor.

High temperature Proximity Switches are available in sizes from M8 to M30 and are equipped either with silicone or Teflon® (PTFE) cable. Silicone cables are extremely flexible, making them ideal for installations where the sensor is in motion. In contrast, PTFE has an excellent robustness but due to its reduced flexibility, PTFE cables should only be used for static installations.

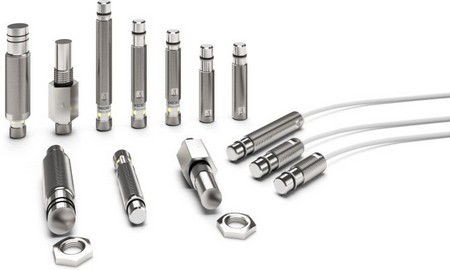

Inductive sensors for high pressure applications are manufactured using two technologies.

The classic construction with a ceramic pressure plate allows pressures of up to 500 bar. It is the most widely used technology for high pressure resistant inductive sensors.

For particularly demanding applications, inductive sensors are alternatively manufactured with an extremely resistant, full metal housing, including the sensors sensing face. Their housing is made from a solid piece of stainless steel which is suitable to resist pressure of use up to 1000 bar | 14500 psi.

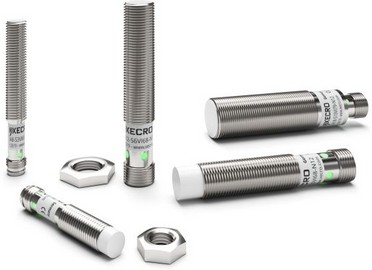

XECRO sensors with analog output precisely measure distances to metal objects. They are ideal for positioning, distance measurement, metal classification, or comparable applications. Sensors M8 incorporate a voltage output. Analog sensors ranging from M12 to M30 incorporate current and voltage outputs in one device. The current output is available in a configuration with 0…20 mA or 4…20 mA

Reverse output configurations are available on request.

All inductive sensors with analog output from XECRO are linearized between zero distance and the maximum Sn. Due to the precise digital calibration of every single sensor during production, there is almost no device-to-device variation — even between sensors of different production lots.

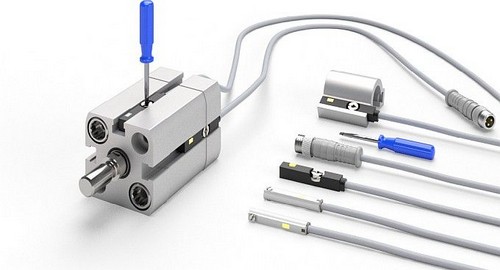

Cylinder position sensors to determine the position of pneumatic cylinders with almost no efforts. Flush groove mounting and top insertion simplify the mounting procedure.

Fully electronic sensor design
Mounting Screw located close to cable exit – securing the sensor from moving if cable is pulled
Compact design
TBL 28 respective 25.2 mm only
Clearly visible switching indicator
Availble with cable or connector

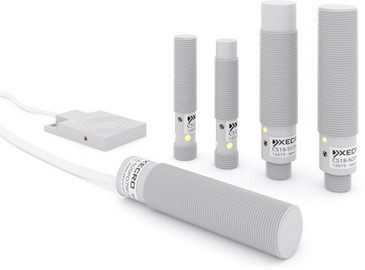

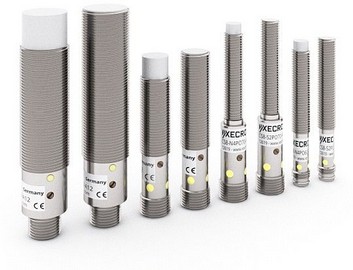

XECRO’s line of capacitive sensors cover all diameters between Ø6.5 mm respectively M8 and M30.

Capacitive Sensors from the Performance Series, offer absolute best-in-class sensing distances. XECRO manufactures shielded capacitive sensors such as e.g. M8 with 2 mm sensing distance, M12 with 6 mm sensing distance and M18 with 12 mm sensing distance. Unshielded Capacitive Performance Series in M30 housings, achieve up to a 35 mm sensing distance.

XECRO provides its line of capacitive sensors also in hermetically sealed PBT housings ranging from M12 to M30.

These sensors with tubular IP69k housings are absolutely waterproof – even when using high-pressure cleaners. They are widely used in car washes, but also in the food industry.
Furthermore, the capacitive sensors from XECRO include a subset with cubic plastic housings. A 40×40 model that offers the best flexibility due to its rotatable sensor head that can be mounted in five directions. And an extra flat model that is ideal for installations on non-metallic tanks and containers. The built-in potentiometer allows the sensitivity to be adjusted until the device detects material through the container wall. Due to the flat design are usually no additional mounting accessories required as with cylindrical sensors.

Capacitive Sensors from the Performance Series, offer absolute best-in-class sensing distances.

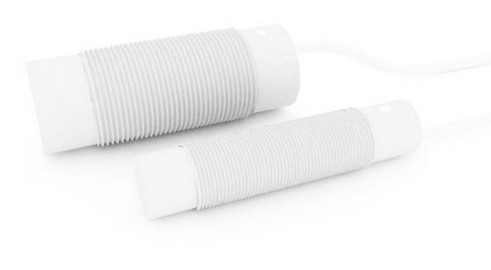

Chemical Resistant To survive in most arressive environments, as e.g. galvanic processes, XECRO builds capacitive sensors in M18 and M30 also with hermetically sealed Teflon® (PTFE) housings as well as PTFE connecting cable.

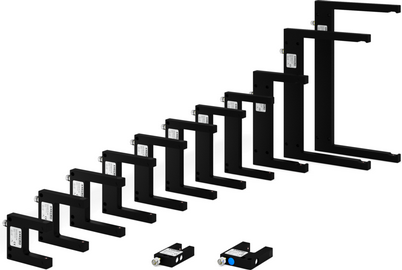

Probably the most advanced series of Fork-Light-Barriers

Identical dimensions for all kind of optics
collimated laser
collimated red-light
infrared
All sizes available with IO-Link®
13 different sizes
One-piece zinc die-cast housings only
Potentiometer or Teach-in function
Static and dynamic detection
High switching frequency
High ambient light immunity
NO↔NC switchable
20 ms impulse lengthening, selectable

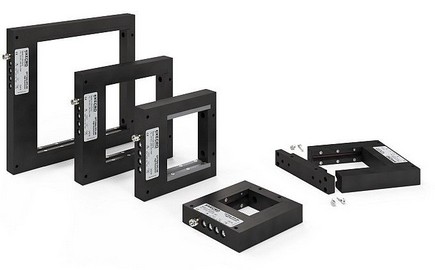

OFT frame light barriers detect metallic and non-metallic, fast-moving as well as static objects inside their active area.

Sturdy metal housing
Resolution from 0.3 mm
Response time from 25 µs
Impulse lengthening adjustable
High ambient light immunity
Static and dynamic detection, selectable
Removable traverse
Optics protected from impact
Also available with soft impact protection
Integrated optics blow-out connections
Also available with analog output

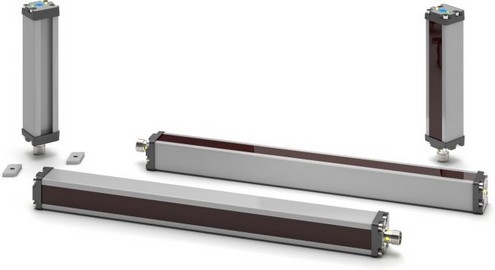

Crossed-beam area sensors form multiple infrared beams into very high density light curtains. Their optical synchronization, where no electric interconnection is required, simplifies replacing single beam light barriers in applications where the irregular shape of the object being detected requires a high resolution sensor.

Teach-in addjustment calibrates every single channel
Fully crossed beam geometry
Extremely short blind zone
High ambient light immunity
Dual output NO and NC
Mute input (PNP or NPN) available
Robust metal housing
T-slot nuts allow flexible mounting and height adjustment

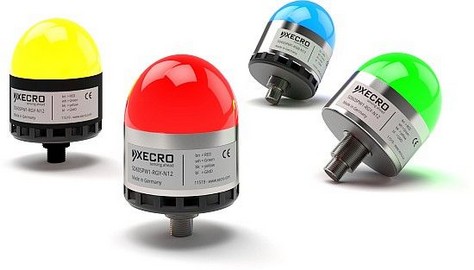

Robust LED Beacon with metal housing and top cover made from polycarbonate.

Fits into ⌀22.5 mm mounting standard
Up to 7 colors, blink patterns and sounds
Homogeneous bright illumination
Metal housings and break-proof polycarbonate
No programming or configuring by PLCs required
Food-grade hygienic version available
Versions with synchronization available
Supports also control systems with 5 V or 3.3 V low-current inputs

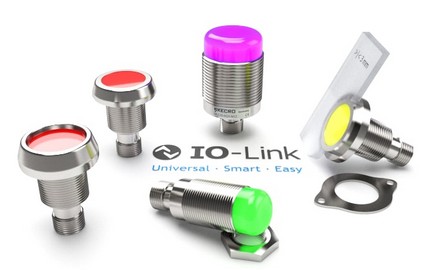

Multiple colored LED indicators, with self-blinking capabilities and IO-Link®, are made for different applications.
Field mounted ones indicate a process status from larger distances, from behind a protection fence for example.
Panel mount indicators have four different stainless -also food grade- bezels to choose from.

Panel mount indicators use the same housings as the unique push and touch buttons from XECRO. They fit into ⌀ 22.5 mm mounting standard holes
Field mount indicators in M18 and M30
Bright optical multi-color status indication
Available with synchronization feature
Available with 3V3 tolerant low current control inputs
Arbitrary access to all features by IO-Link®

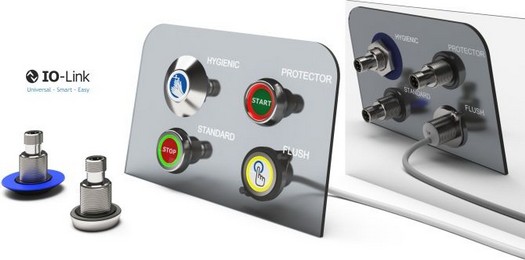

These electronic buttons, Touch and Push activated, are completely solid-state with no moving parts, which allows unlimited operations with no wear.

Fits into ⌀ 22.5 mm mounting standard holes
Stainless bezels – food-grade hygienic version available
No moving parts — no wear
100% water tight and oil tight – IP69k
Shock resistant — completely potted
Bright optical dual-color feedback
Also available with enable-input
Also available with two inputs for individual LED control
Also available with IO-Link®
